Nisa brand ISI marked Stirrup type Sprayers is clamped on a stirrup or a stand, which is held steady with the operators foot. A ‘D’ type handle is provided to operate the sprayer.
It is non pressure retaining sprayer and is ideal for small field, vector control and lawns. It confirms to the WHO Specification No.WHO/EQP/3.R3
The sprayer is immersed in the bucket containing spray solution and its handle is moved up and down to obtain pressure.

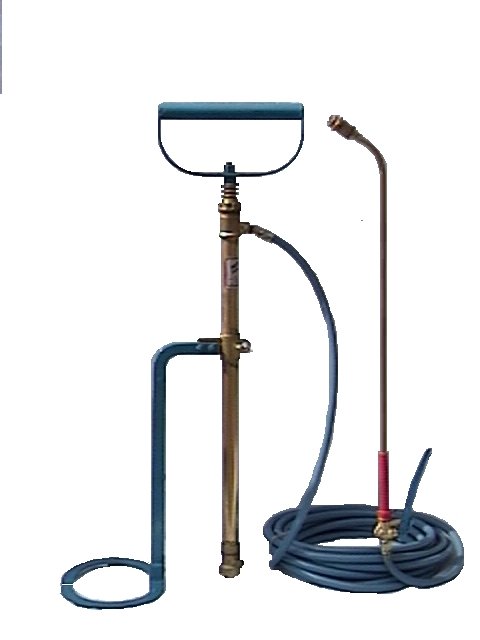

The Sprayer comes with 5 m long delivery hose, spray lance 60 cm long, goose neck and flat fan nozzle. The other end of the lance is connected to the trigger cut of valve and delivery hose.
An additional Pressure Chamber is provided in Model N-1 which maintains constant and even pressure.
Tested and approved by Bureau of Indian Standards
| Working Pressure– Agriculture | 300 Kpa |
| Working Pressure– Public Health | 75 Kpa |
Features:

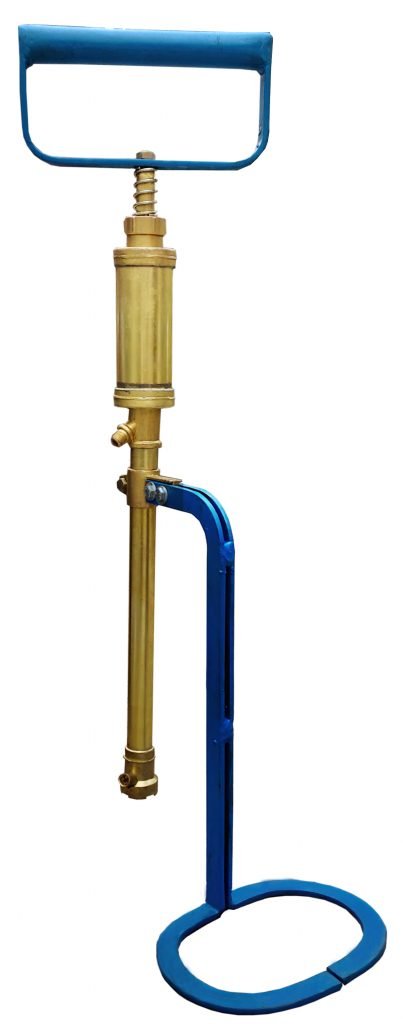

The Stirrup Pump is made of Brass and its stand is made of Mild Steel. It is non corrosive to chemicals.
It includes the following items:
- Stainless Steel Nozzle tip 8002
- Built in Agitator
- Trigger with Strainer
- 60 cm long straight Wand (Spray Lance)
- 5 mts long PVC Delivery Hose
Specification
| Brand Name | Nisa |
| Model | N-1, N-2 |
| Tank Capacity | 12 Lts and 10 Lts |
| Pump material | Brass |
| Handle | ‘D’ Type Mild Steel / Wood |
| Gross Weight | 3.5 – 3.75 Kgs |
| Box Size | 88 x 42 x 27 cm |
| In 20 feet container | 1600 nos |
